On this occasion I would like to share with you some general information about sonic logging and how it is used in oil well drilling.

***Introduction***



The first thing it is important to highlight before going into the generalities of sonic logging is that the sonic log belongs to one of the many varieties of tools used in the different types of well logging.

Its way of acting allows it to have some advantages over other types of tools used to perform other types of well logging, another factor to take into account is that the sonic log has the particularity that it yields signals that are useful for the calculation of some petrophysical elements that are important in hydrocarbon exploration.


Image source

***What is sonic logging?***



Sonic logging is a type of logging using a tool that generates a transit time interval in a given lithologic formation.


Image source

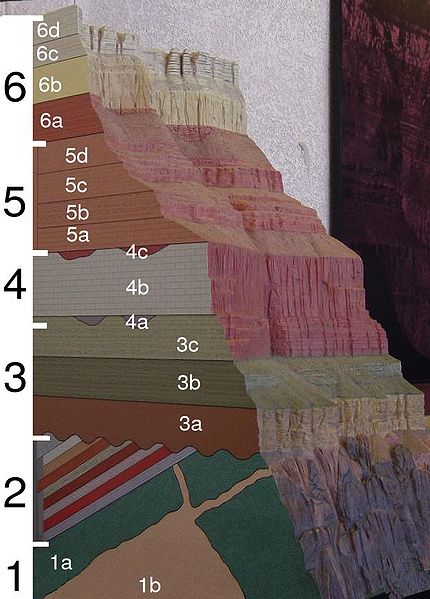

There are multiple factors that can vary this transit time value, since as we know the lithology in the geological formations of the subsoil varies in its shape, porosity, hardness, among others, making that in some the transit time is higher or lower than other formations.

***How is the sonic logging process performed?***

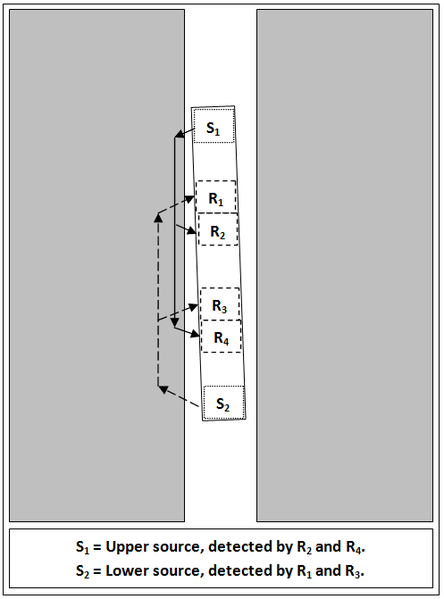

The first thing that is calculated is the travel time interval from the transmitter to the receiver, however in this trip certain barriers are crossed that prevent a correct reading, such is the case of drilling mud, so you have to make a correction by placing two receivers, one near and the other farther away, all this is done because the travel time within the drilling mud is common to both receivers.


Image source

One of the petrophysical parameters that is linked to this log and that an estimate of its value can be calculated is the porosity of the formation, since depending on how the porosity of the rock is, it will be evident if the transit time can vary considerably.

***How is the porosity of the rock calculated from the sonic log?***


Image source

Many equations have been studied and proposed to calculate porosity based on the sonic log, however the most commonly employed in the oil industry is the Wyllie time-averaging equation.

The parameters that are intrinsic in that equation are radicalized in holding a condition under which the total travel time recorded in the log is the sum of the time the sonic wave spends traveling through the solid part of the rock which is called the rock matrix, the time the sonic wave spends traveling through the fluids in the pores must also be taken into account.

I believe that this equation is very complete since it takes into account all the elements and barriers that the sound must overcome within the spaces of the rocks that make up the geological formation of the subsoil.



Imagen elaborada utilizando las herramientas de diseño de Microsoft PowerPoint. Autor @carlos84

***Conclusion and contributions***



It is important that well drilling can count on multiple variants in well logging, since drilling cannot be left behind only for development wells, but also that exploratory capacity needs the diverse profiles to record petrophysical data that can be used to drill the wells that as a whole will be the development wells of a certain oil field.

Sonic logging is one of these important variants, which has its advantages and disadvantages, but in the field can be used depending on the factors that may favorably influence its use. Accuracy is always a questioned factor in this type of logging, however everything will depend on the ability to calibrate the tools used in this type of logging.

***Recommended references for further learning***



Sonic Logging a utility in Geophysics and Geomechanics #especial

Sonic profiling while drilling: Shear responses. PDF document

Application of the BHC compensated sonic log. PDF
